How to download products directly

It describes the procedure to download the product directly using FTP, HTTPS etc protocols.

Products that can be downloaded by FTP or SFTP
 Regarding FTP, it is a user that can be used by specific users and registered users, and the product to be downloaded is "standard product".
 For SFTP, it is a user that can be used by a specific user, and products to be downloaded are "standard product" and "near real time product". Regarding "standard product" and "near real time products", the range that can be referred to differs depending on the belonging group.
TransferProductsPathAuthenticationUsers
FTPStandard product/standard
/order
/process
・Account(password fixed: anonymous)・Specific User
・Registered User
SFTPStandard product/standard
/order
/process
・Account(Web registration password)
・Key
・Specific User
Near real-time Product/nrt
Directory structure

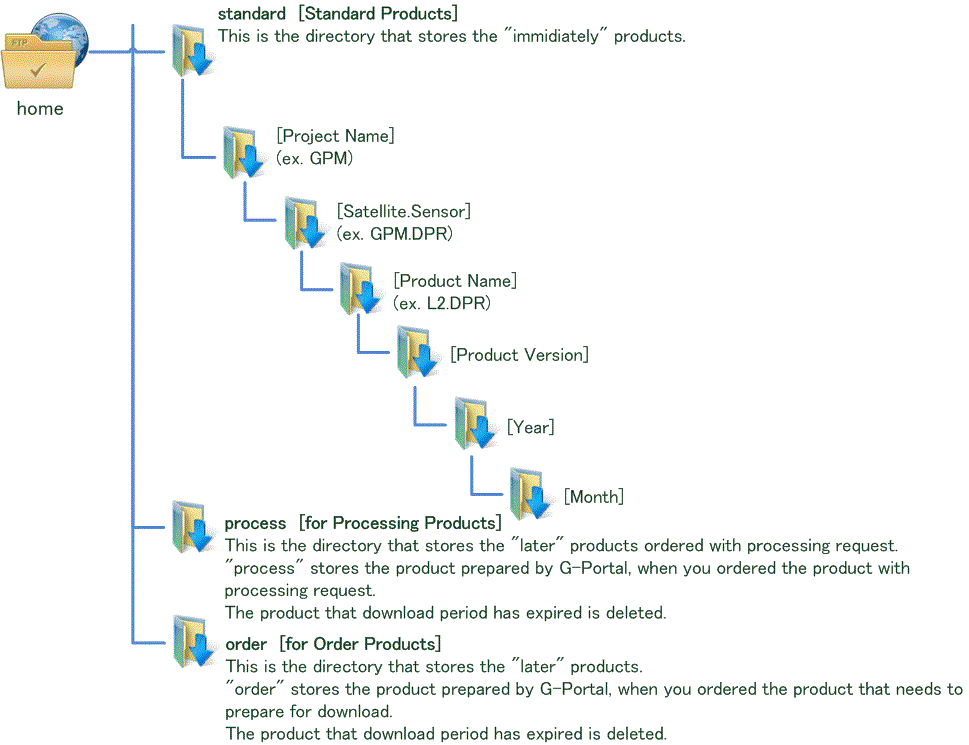

* Directory structure of standard product
The directory structure of the standard product is as follows.

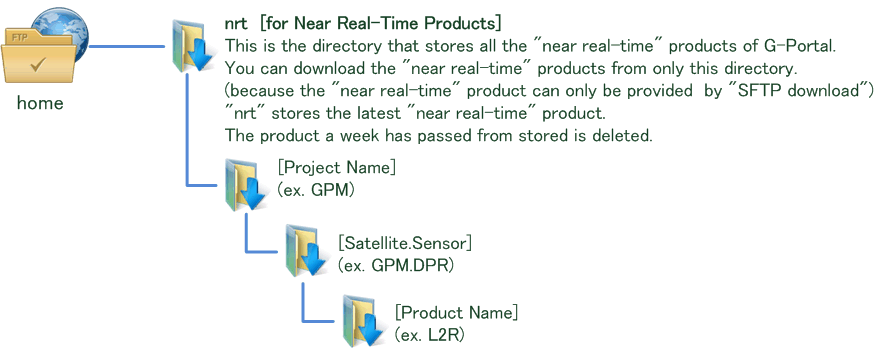

* Directory structure of quasi real-time products
The directory structure of the near real time product is as follows.
Downloading FTP-based products
 For direct retrieval using FTP, account authentication with fixed password (anonymous) is performed. For the directories that can be accessed by FTP, please refer to "Products that can be downloaded via FTP or SFTP" "Directory configuration", for download method using FTP, please refer to "Download method using FTP".
How to download using FTP
This section shows the download method for UNIX (including Mac OS X) and Windows.
* Basic information
hostftp.gportal.jaxa.jp
port21
protocolFTP
user nameuser account registered in G-Portal
passwordanonymous

(1) UNIX (including Mac OSX)
* Connect FTP(Account authentication)
By entering the following command on the command line, you can access using FTP.
$ ftp ftp.gportal.jaxa.jp


When connecting properly, "Name:" will be displayed on the command line, so please enter your user account.
Name (ftp.gportal.jaxa.jp:test):


Please enter the password (anonymous) as it appears on the command line "Password:".
Password:


The following will be displayed if you have logged in successfully:
230 User XXXXXX logged in

Remote system type is UNIX.

Using binary mode to transfer files .

ftp>

is displayed.

* List display
Enter
ftp > ls

to display a list of files and directories

* Change directory
Enter:
ftp> cd [directory name]

to move to a specific directory.

* Download a file
Enter:
ftp> get [file name]

to get a file. The specified file will be downloaded and saved in a directory on your computer.

* Exit FTP
Enter:
ftp > bye

to close FTP.

(2) Windows
Here, it shows how to download with the FTP client software "WinSCP".
* Installation WinSCP
(1) Download WinSCP Installer from the following site.
(2) Start the installer.

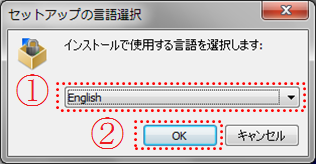

(3) Select "English" (1) and click [OK]. (2)

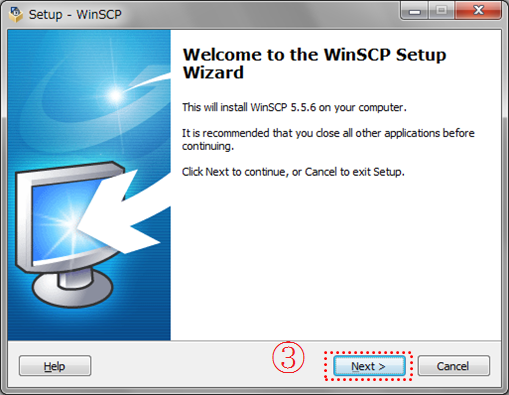

(4) Click the [Next] button. (3)

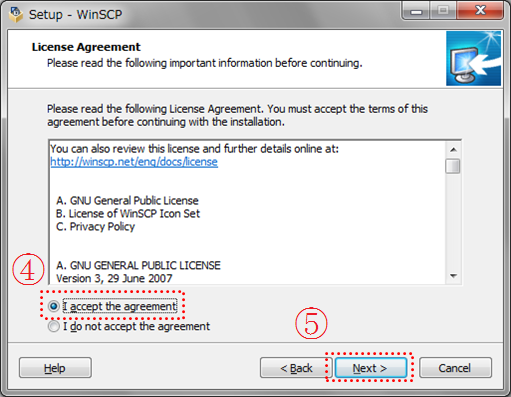

(5) In the agreement of the license agreement, select "I accept the agreement" (4) and click [Next]. (5)

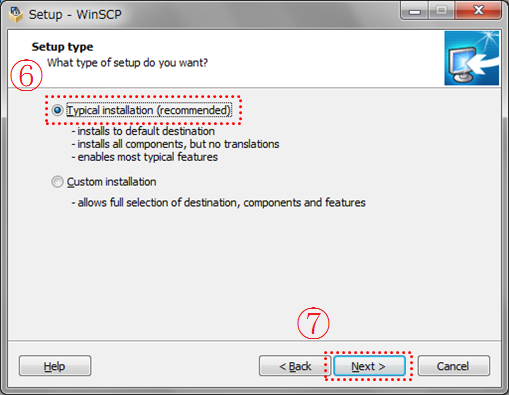

(6) Select "Typical installation (recommended)" (6) and click "Next". (7)

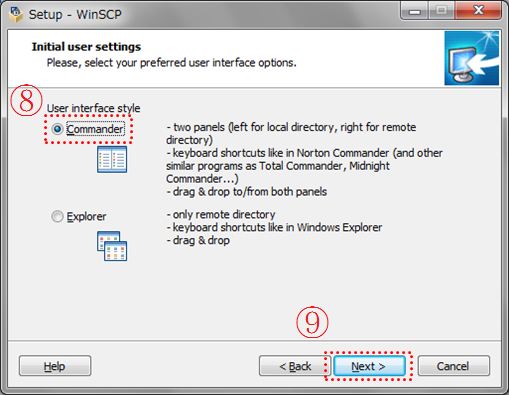

(7) Select "Commander" (8) and click "Next". (9)

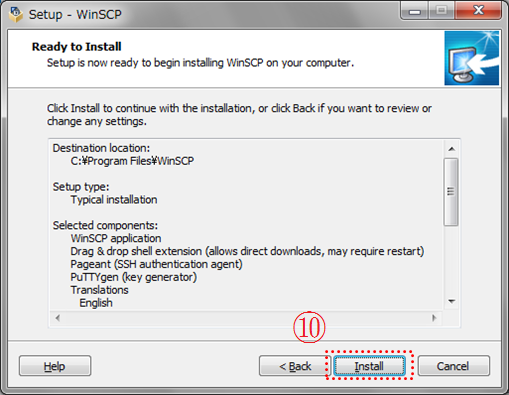

(8) Click [Install] to install. (10)

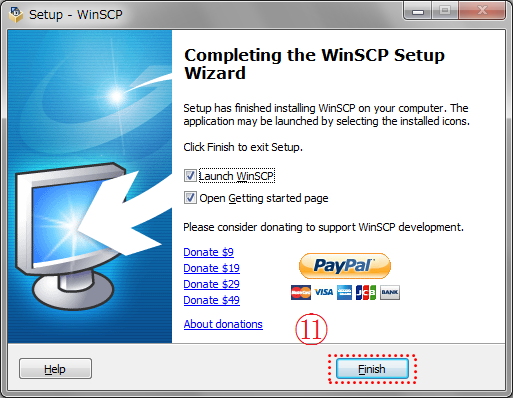

(9) When installation is successful, the following screen is displayed, so click [Finish]. (11)
* Connect FTP(Public key cryptographic authentication)

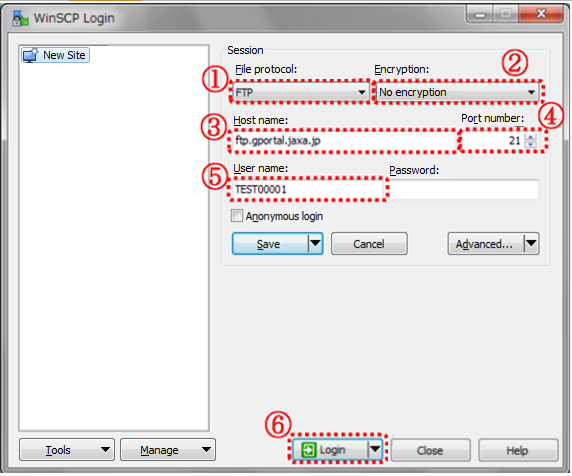

(1) Start WinSCP.
(2) Select "FTP" for the File protocol. (1)
(3) Select "No encryption" for encryption. (2)
(4) Enter "ftp.gportal.jaxa.jp" as the Host name. (3)
(5) Enter "21" for Port number. (4)
(6) Please enter the user account registered in G-Portal as User name. (5)
(7) Press [Login] and access FTP. (6)

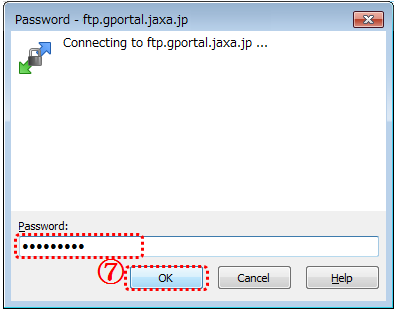

(8) Enter "anonymous" as the password and click [OK]. (7)

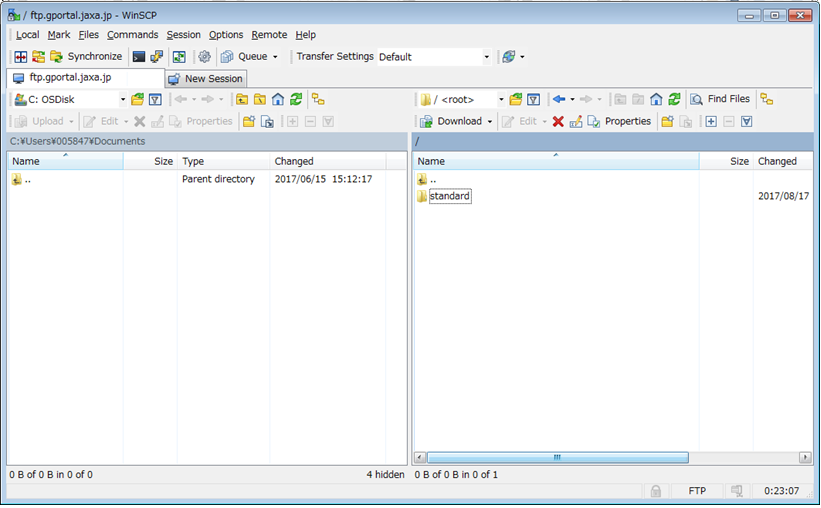

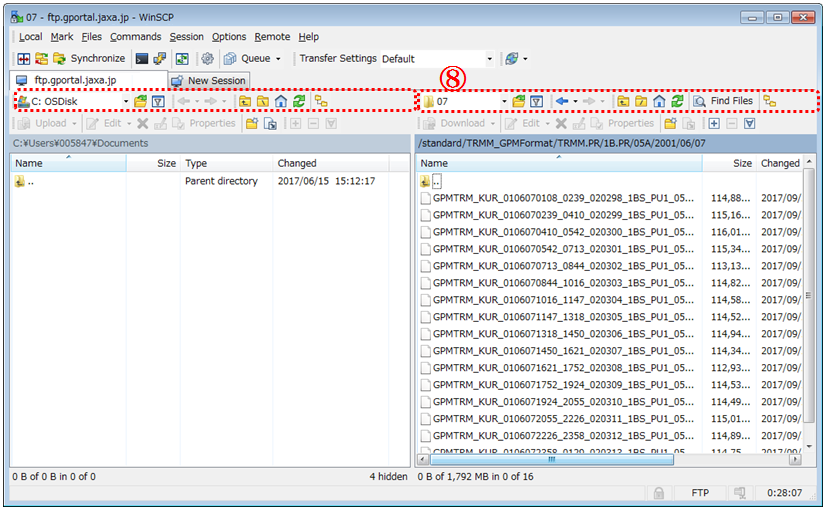

(9) When login is successful, the following screen will be displayed.
The left pane is your computer and the right pane is the G-Portal directory.
* Change directories
Move the directory from the directory move button or pull-down menu. (8)
* Download a file

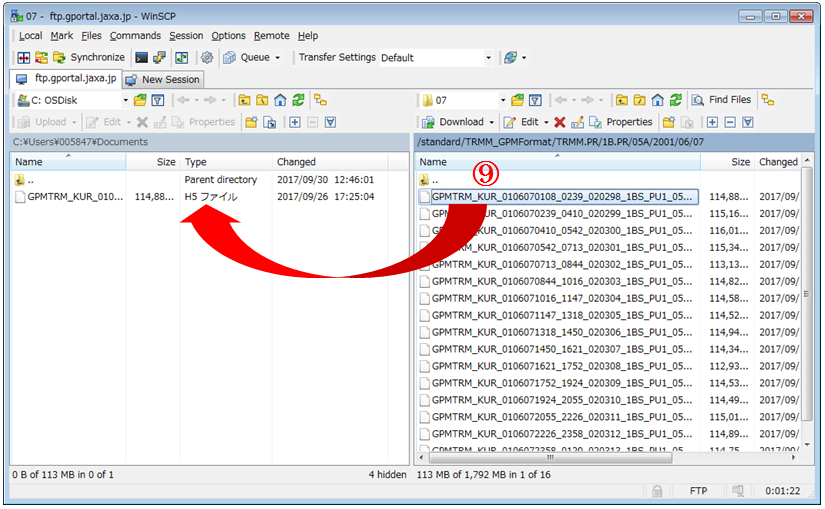

Select the product you want to download and drag & drop it. (9)
* Select multiple files and drag & drop them, you can download them all at once.
* Exit WinSCP
Click [Commands]-[Quit] to close WinSCP.
Downloading products using SFTP
 For direct acquisition using SFTP, account authentication or user authentication by public key cryptography is performed.
 When performing user authentication by public key cryptosystem, it is necessary to create secret key / public key beforehand and register its public key in G - Portal. Please refer to "Create your private key ・ Public key yourself", "Register public key" or "Download secret key created with G-Portal" for creating and registering private key ・ public key.
 For the directories that can be accessed, please refer to "Products that can be downloaded via FTP or SFTP" "Directory configuration", for downloading methods using SFTP, please refer to "How to download using SFTP".
 Depending on the organization to which the user belongs, access to the outside by SFTP may be prohibited by policy. In that case, please consult with your network administrator of your organization. G-Portal uses 2051 instead of normal 22 for the TCP port used for SFTP in consideration of safety.
Create your private key ・ public key yourself
This procedure is unnecessary when "Download secret key created with G-Portal" is executed.
(1) UNIX (including Mac OS X)
(1) Open the terminal and execute the following command. (If it can not be executed, check whether ssh is installed.)
$ ssh-keygen


(2) The following message for requesting the save directory and save name of the public key / secret key is displayed.
Enter file in which to save the key (/Users/[UserName]/.ssh/id_rsa):

To specify the save directory and save name, enter the directory name and save name.
If you press enter without entering anything, id_rsa (private key) and id_rsa.pub (public key) will be stored in the default directory / Users / username /.ssh.

(3) The following message will be returned requesting the passphrase for decrypting the private key.
Enter passphrase (empty for no passphrase):

To set the password to be entered when connecting SFTP, enter the password.

This completes the creation of the public key / secret key in the set directory.

(2) Windows
The following outline is an example using the “PuTTY-gen” software application to generate public and private keys. Download PuTTY-gen from the following site and install it on your computer. PuTTY-gen download site: http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html

(1) Activate PuTTYgen from "All Programs" - "PutTTY Opaque Version" - "PuTTYgen".

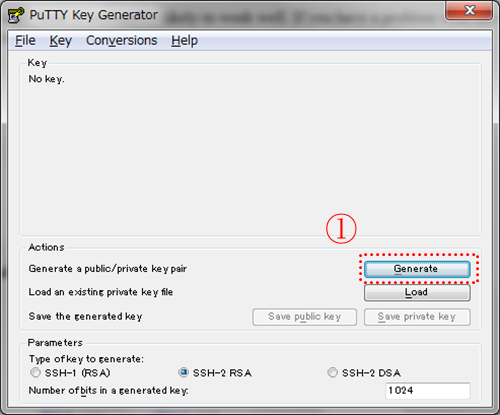

(2) Press [Generate] (1), and start to create secret key and public key.

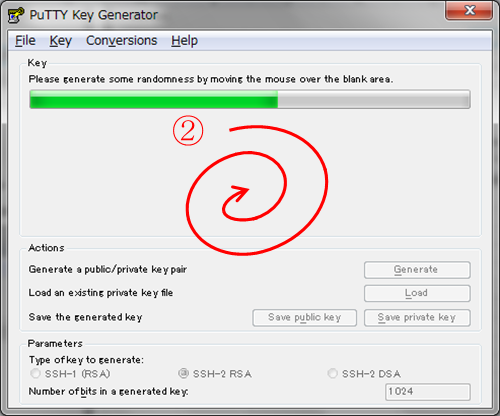

(3) Move the cursor in the blank area of the screen (2). Create a random number and create a key.

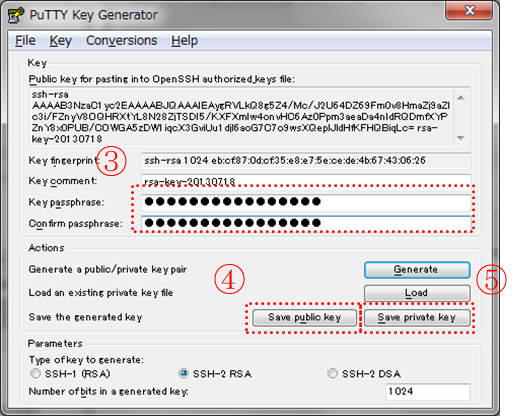

(4) (Optional) Enter the password to decrypt the private key. (3)
(5) Click [Save Public Key (U)] and save the public key to your computer. (4)
(6) Press [Save private key] and save the secret key to your computer. (5) Register this public key in G - Portal in the next section. Be sure to create the public key and secret key at the same time.
(7) Press [File] → [Close] and exit PuTTYgen.
Register public key
 In order to do a direct acquisition using SFTP, register the created public key in G - Portal. (Please do not register secret key.The secret key is used to access SFTP server.)

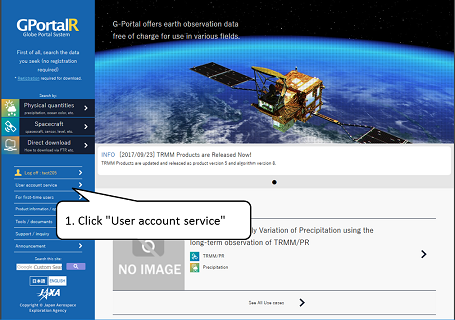

(1) After logging in to the system, click "Account service" on the menu to display the user account service screen.
(2) Specify the public key file from the "Browse" button.
If the public key has already been registered, it will be updated to the specified public key.
(3) With the "Upload" button, the specified public key is registered in this system.
Download secret key created by G-Portal
You can acquire the secret key created by G - Portal.
"Create your own secret key ・ Public key yourself" This procedure is unnecessary when "3.3.2 Register public key" is carried out.

(1) After logging in to the system, click "Account service" on the menu to display the user account service screen.
(2) Click the "Download" button to generate the secret key and download the secret key to your computer. Also, generate a corresponding public key and register it on the GPortal.
How to download using SFTP
 This section shows how to download in UNIX (including Mac OS X) and Windows.
 Basic information
hostftp.gportal.jaxa.jp
port2051
protocolsSFTP
user nameUser account registered in G-Portal
passwordPassword registered with G-Portal
(Used for account authentication)
Private keyA secret key corresponding to the public key registered in G-Portal
(Used in case of public key cryptographic authentication)

(1) UNIX (including Mac OSX)
* Connect SFTP(Account authentication)
Enter the following command into the command line to enable access using SFTP.
$ sftp -oPort=2051 [account]@ftp.gportal.jaxa.jp

"Password:" will be displayed in the command line if a proper connection to the system has been established, so enter your password.

The following will be displayed if you have logged in successfully:
sftp >

is displayed

* Connect SFTP(Public key cryptographic authentication)

$ sftp -oPort=2051 -oIdentityFile=[public key path] [account]@ftp.gportal.jaxa.jp


The following will be displayed if you have logged in successfully:
sftp >

is displayed.

* List
Enter:
sftp > ls

to display a list of files and directories.

* Change directory
Enter:
sftp> cd [directory name]

to move to a specific directory.
* Note: Due to access restrictions, you might not be able to move to a directory even if it is displayed in the list.

* Download a file
Enter:
sftp> get [file name]

to get a file. The specified file will be downloaded and saved in a directory on your computer

* Exit SFTP
Enter:
sftp > bye

to close SFTP.

(2) Windows
 The following outline is an example using the “WinSCP” software application to download via SFTP.

* Installation WinSCP
(1) Download WinSCP Installer from the following site.
(2) Start WinSCP Installer.
(3) Select "English" (1), and click [OK]. (2)
(4) Click [Next]. (3)
(5) Select "I accept the agreement" (4), and click [Next]. (5)
(6) Select "Typical installation (recommended)" (6), and click [Next]. (7)
(7) Select "Commander" (8), and click [Next]. (9)
(8) Click [Install]. (10)
(9) image below will be displayed if you have logged in successfully. Click [Finish]. (11)
* Connect SFTP(Account authentication)
(1) Start WinSCP.
(2) Select "SFTP" for the File protocol. (1)
(3) Please enter "ftp.gportal.jaxa.jp" as the host name . (2)
(4) Enter "21" for port number. (3)
(5) Please enter the user account registered in G - Portal as user name . (4)
(6) Press [Login] to access FTP. (5)

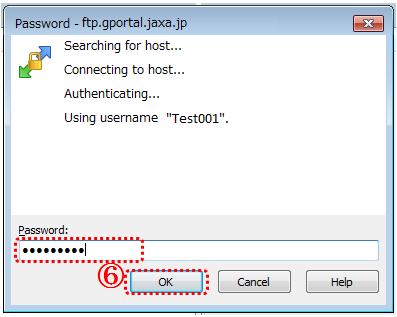

(7) Enter the password corresponding to the account registered on the web screen for the password and click [OK]. (6)
(8) When login is successful, the following screen will be displayed.
The left pane is your computer and the right pane is the G-Portal directory.

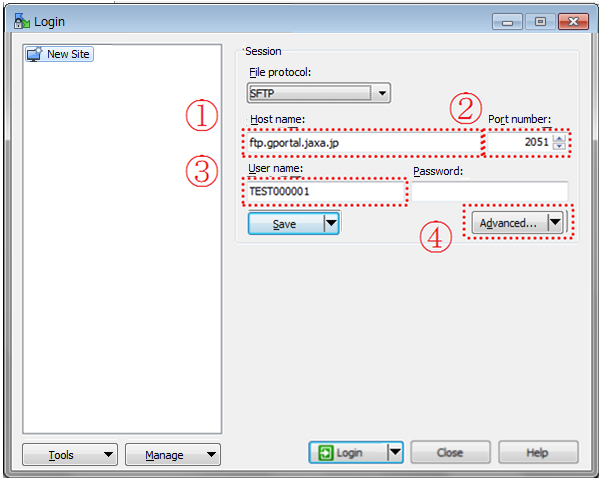

* Connect SFTP(Public key cryptographic authentication)
(1) Start WinSCP.
(2) Enter "ftp.gportal.jaxa.jp" into "Host name". (1)
(3) Enter "2051" into "Port number". (2)
(4) Enter the user account registered in G-Portal into "User name". (3)
(5) Click [Advcanced...](4) to set private Key File.

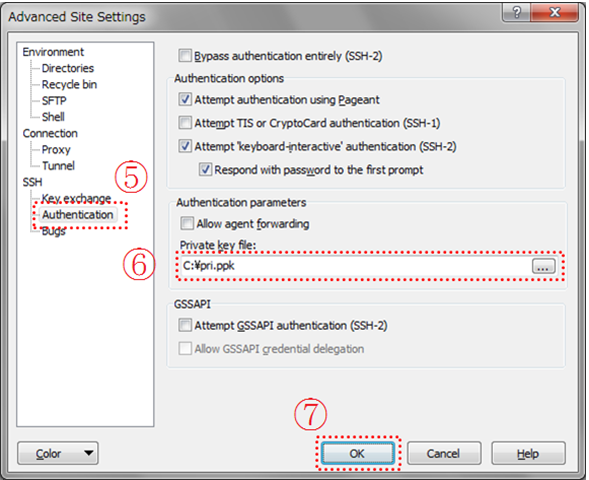

(6) Select "Authentication".(5)
(7) Select private key file that you created into "Private key file". (6)
(8) Click [OK].(7)

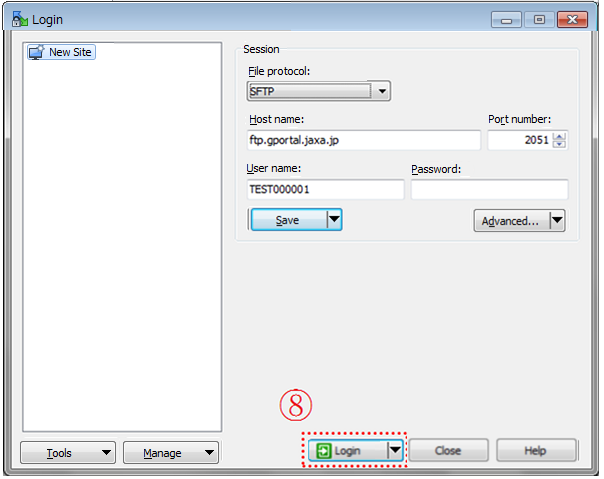

(9) Click [Login] (8) to SFTP login.

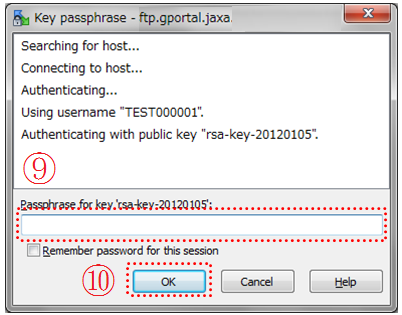

(10) If you have set a password to decrypt the private key (9), click [OK] (10) button to enter the password that you set.

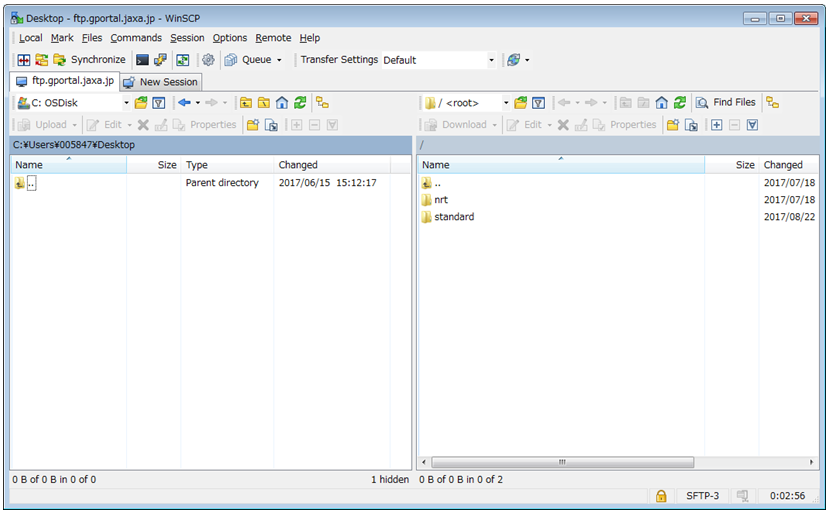

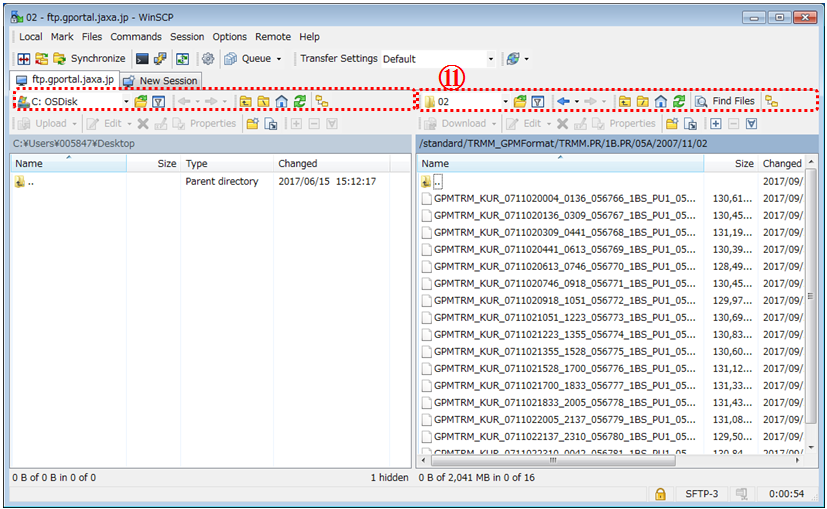

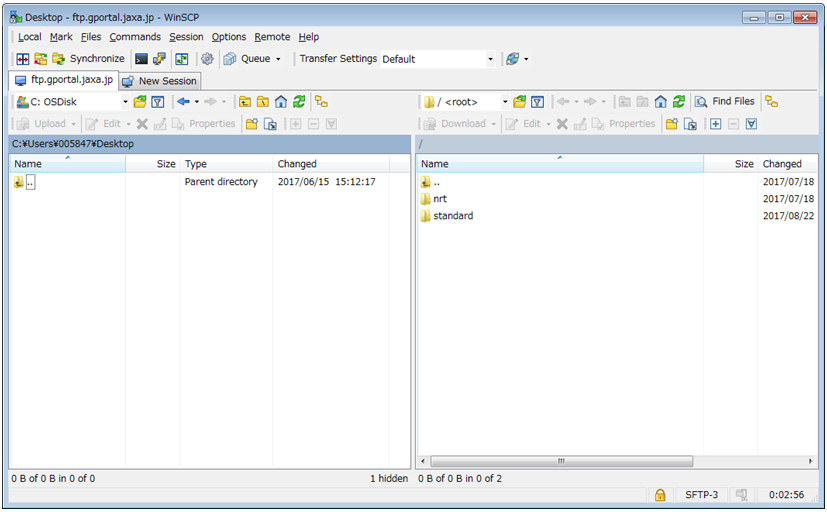

image below will be displayed if you have logged in successfully.
The left pane is your computer folder, the right is the G-Portal directory.
* Change directories
Change directories from the pull-down menu and navigation buttons.(11)
Note: Due to access restrictions, you might not be able to move to a directory even if it is displayed in the list.

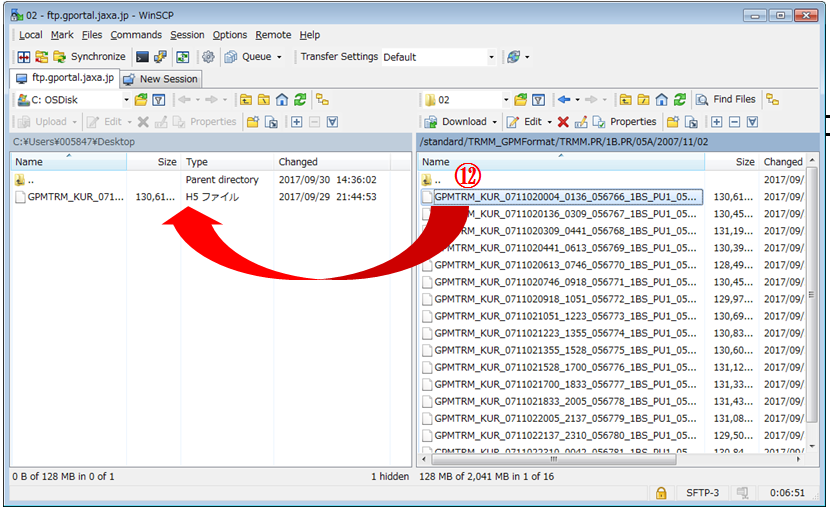

* Download a file
Drag and drop the products you want to download.(12)
Note: When you drag and drop to select multiple files, you will be able to bulk download.
* Exit SFTP
Click [Commands]-[Quit] to close WinSCP.
